Natural Gas Strainers

Strainers are the first piece of equipment used for the conditioning and filtration of natural gas, oil, water, or just about any fluid moving in a pipeline. We have all possible configurations: “Y” (wye), “T” (Tee), simplex, duplex, and automatics. Body materials include cast iron, steel, stainless, and non-metal: plastic, fiberglass, etc. They are a very sturdy, long lasting option for removing the larger contaminants: they are very reliable down to about 50micron size particles. The straining element is usually made in stainless steel with 1/8” or 1/4″ standard perforations, and a mesh is added for the desired particle size to be removed.

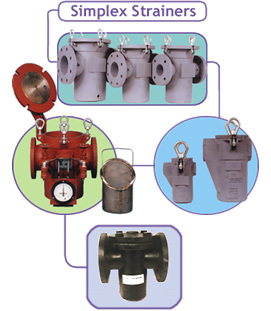

Simplex Strainers


Basket type filters or strainers. Application: permanent. Connections: Threaded 1/2“ to 2″. Flanged: 2-42”. Materials: Body: iron, steel, stainless steel and others. Filter element (basket): stainless steel. Special materials available. Filtration grades available: 1″ to 0.001” (25 microns). Advantages: ease of maintenance for its exclusive easy opening design, great particle holding capacity, less pressure drop over the filter element length.


Simplex Natural Gas Filter Strainers

Y Strainers


‘Y’ (wye) filters or strainers. Application: temporary, or with low concentration of contaminants. Connections: Threaded 1/2“ to 3″. Flanged: 2-24“. Materials: Body: iron, steel, stainless steel and others. Filter element (sieve): stainless steel. Filtration grades available:. 1″ to 0.001” (25 microns). Advantages: low cost. Disadvantages: low particle retention capacity, maintenance difficulty.


Duplex Strainers


Basket type filters or strainers “Duplex”. Application: Permanent. Connections: Threaded 1/2“ to 2″. Flanged: 2-18”. Materials: Body: iron, steel, stainless steel and others Filter element (basket): stainless steel. Filtration grades available: 1″ to 0.001” (25 microns). Advantages: no need to interrupt the cleaning process, as there’s always a stand-by strainer. Ease of maintenance for its exclusive easy opening design, great particle holding capacity, less pressure drop over the filter element length.


Duplex Filters Strainers for Natural Gas
Automatic Strainers

Automatic Strainers


Automatic Filters or Strainers, “Self-Cleaning” basket. Application: Permanent. Connections: Flanged, 2“ to 42″. Materials: Body: iron, steel, stainless steel and others. Filter element (basket): Stainless steel. Filtration levels available: 1/4“ down to 125 microns. Advantages: due to design of automatic operation, does not require to interrupt the cleaning process. It’s controlled by timers, pressure drop setting, or manually.


We Can Help!

Let us know the specifics of your filtration needs: we can help!

Email us Here
