Strainers are the first step in an integral treatment of natural gas. Their purpose is to filter the natural gas (or any other fluid) and collect larger solids in their filtration element (strainer basket). We have all types available: “Y,” Simplex, Duplex, and Automatics. Connections threaded and flanged (depending on specific sizes), from ½” to 36”. Construction materials: Iron, Carbon Steel, Stainless, Bronze, and others. Cast and fabricated. Filtration levels from ¼” to 1 micron. Durable, replaceable straining elements manufactured in Stainless Steel 316 (other materials available). Designed, tested and manufactured to applicable NACE, ASME and other international certifications and standards. Also temporary cone strainers to your specific dimensions. Provide us with the specifics of your application, and we’ll engineer and offer the best solution: we want to be a part of your project
Separators are used to remove a big amount of liquids (water and hydrocarbon liquids) from the natural gas stream, and they are very efficient with larger size liquid particles. The gas is made to flow through several stages inside the Separator (inertial impaction, vane pack, mesh pack) where the liquid drops are forced to separate from the gas stream and precipitate to the bottom of the Separator. Designed, tested and manufactured to applicable NACE, ASME and other international certifications and standards. Give us your operating conditions, and we’ll engineer and offer the best specific options for your application!
The last stage in treating natural gas is the Filter-Coalescer. This device will remove the smallest solid and liquid particles (aerosol) that may still be present in the natural gas stream after being treated with a Strainer and a Separator. The efficiency of the Filter-Coalescer can be designed to go as high as 99.997% (and down to 1 micron or less) in both liquid and solid particles. Newer technologies allow us to offer more practical designs, keeping in mind that the maintenance operations (replacing the filter-coalescer elements) should require the least effort and use of manpower. Short delivery times are available. Designed, tested and manufactured to applicable NACE, ASME and other international certifications and standards. Let us know about your project, and we’ll be able to propose the best complete solution!
Our goal is to offer the correct replacement filter element, available at the right time, at competitive costs. With many years experience, we can provide all kinds of replacement filter elements in all kinds of materials, specifications, efficiencies, micron ratings, and configurations. We are a proud representative of Shawndra Products (Sparks Filters) and can replace (as reference) the following brands: Jonell, Pall, Peco, Parker, Clark-Reliance, etc. We can also manufacture filters and straining elements per your dimensions and specifications: Let us help you with all your filtration needs!

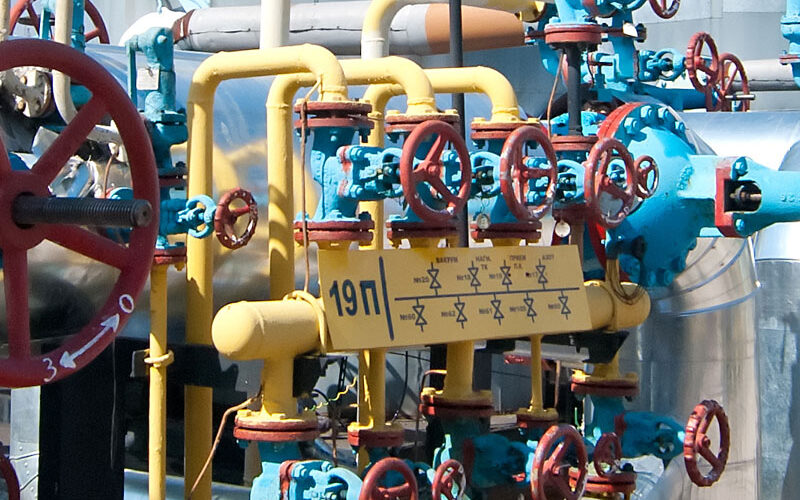

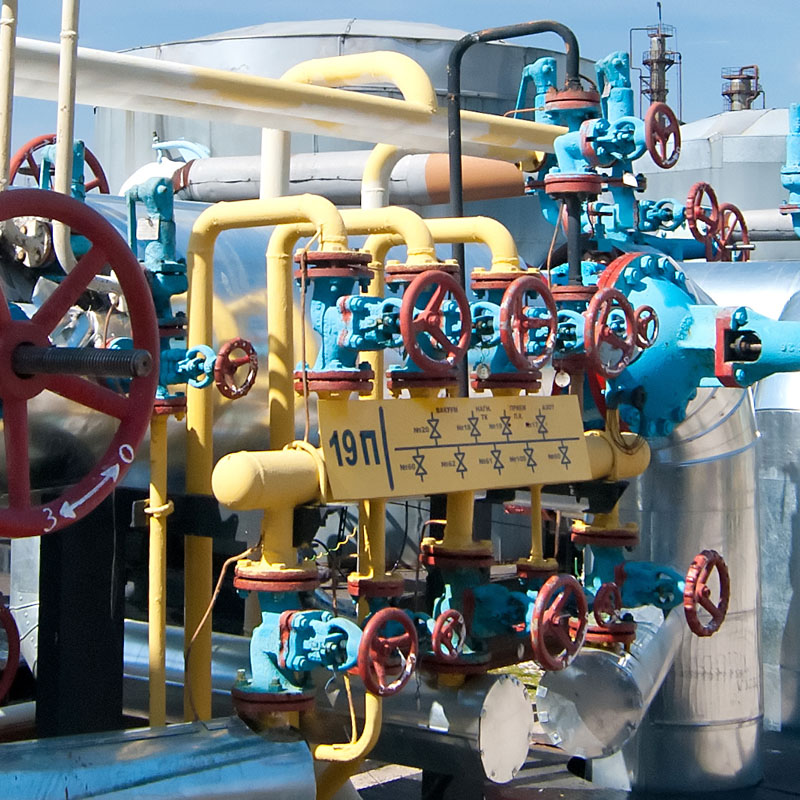

The Importance of Natural Gas Filtration
Natural gas (also called fuel gas) is a mix of hydrocarbon gases (the largest component is methane). It’s a fossil fuel and can be found in reservoirs underground, either alone or mixed with crude oil in oilfields. It’s the most widely used combustible in industrial operations. Its use is common in manufacturing processes of all kinds (glass, steel, plastics, fertilizers, etc.). Heating is, of course, another big application for natural gas as a fuel: households all around the world depend on heating systems that burn natural gas. Power generation may be the largest worldwide consumer of natural gas: this fuel for generating energy is preferred above others (such as coal, or diesel fuel) since it burns cleanly and is more friendly with the environment. Natural gas is also generally very safe to handle. However, natural gas in its raw form comes with many liquid and solid contaminants, which must be removed so it can achieve high-efficiency levels: a thorough natural gas treatment process must be applied. And even after cleaning the raw natural gas to industry standards, the operations needed for transportation in pipelines (pumps) may add liquid contaminants that will again need to be removed
Natural Gas as a Fuel for Power Generation
Natural gas is preferred over other options because it’s a source of energy cleaner and safer than other fuels. Furthermore, there has been an increase in the known available supply of natural gas, so its prices remain competitive for the power generation industry. More natural gas-fired power plants are in operation (and new being built nowadays) than any other power generation technology. But the impurities that this fuel gas contains in its natural form can severely affect its efficient performance, so they must be removed. Different technologies and processes are available as complete treatment to convert the raw, highly contaminated natural gas in underground reservoirs, to the clean, reliable fuel gas needed for power generation
The Process of Natural Gas Treatment / Filtration
In order to turn raw natural gas from its original contaminated state into the fuel gas needed for natural gas-fired power plants to run efficiently, both solid and liquid contaminants must be removed as part of a complete treatment. Here are the primary products and technologies used for his matter:
- Strainers. Simplex (or duplex) basket strainers are used as the first step for purifying natural gas in the pipeline: remove large solid contaminants. Strainers can be built in several materials, although Carbon Steel is preferred. The filtration element (strainer basket) is usually manufactured in stainless steel, so it’s durable and reusable. A basket strainer can efficiently remove solid contaminants down to 100 microns (smaller particles can be removed with special design straining elements).
- Separators. These are used to separate large liquid contaminants (hydrocarbon oils, gels, and water) from the natural gas stream in the pipeline. In the separator vessel, the natural gas flow is forced to go through a series of devices (inertial separators, vane packs, mesh pads) that turn the smaller liquid drops into large drops that are precipitated and collected in the bottom of the vessel to be removed later.
- Coalescer Filter. This is the last stage in the process of cleaning the natural gas. After going through the basket strainers that remove the larger solid particles, and then the separator to collect most of the liquid particles, the natural gas will still contain fine contaminants. Now, the Filter Coalescer will remove solid and liquid particles down to 1micron sizes or less, with efficiencies of over 99.9%.
Please email us with the specifics of your project:
we’d like to be of assistance!
